Turnkey PCBA testing and provisioning
Testing your PCBA's can be expensive, but it doesn't have to be.
Everything you need

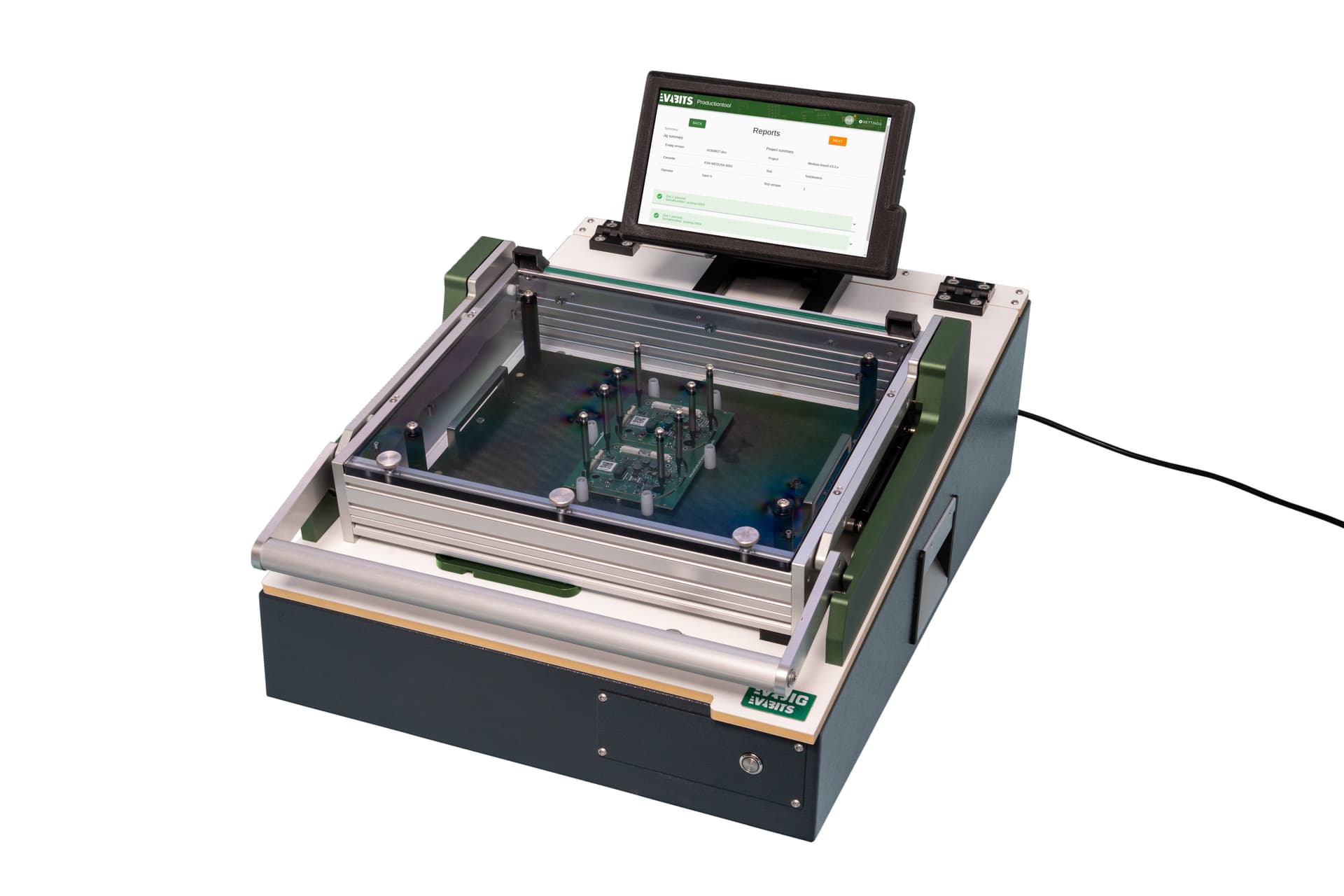

The EVAjig is a testing device, complete with dashboard and portal. It is all you need to start programming, provisioning and testing your PCBAs. EVAjig offers easily exchangeable cassettes and wide variety of general functionality. This makes the EVAjig the test device of choice when looking to test many different PCB designs.

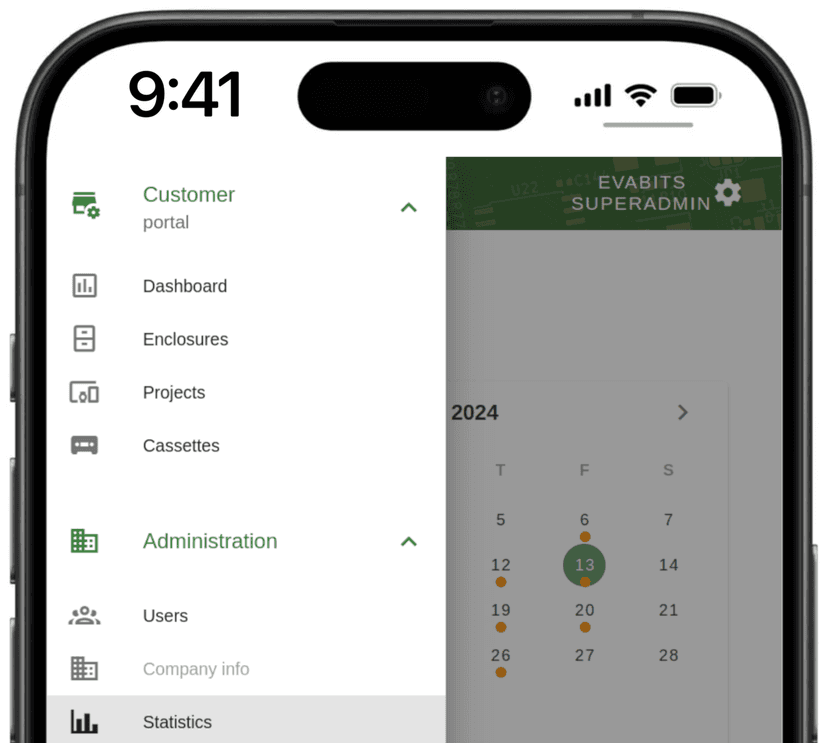

Manage your test results and keep an eye on production all in one place.
Optimize production
Test your Printed Circuit Boards professionally.

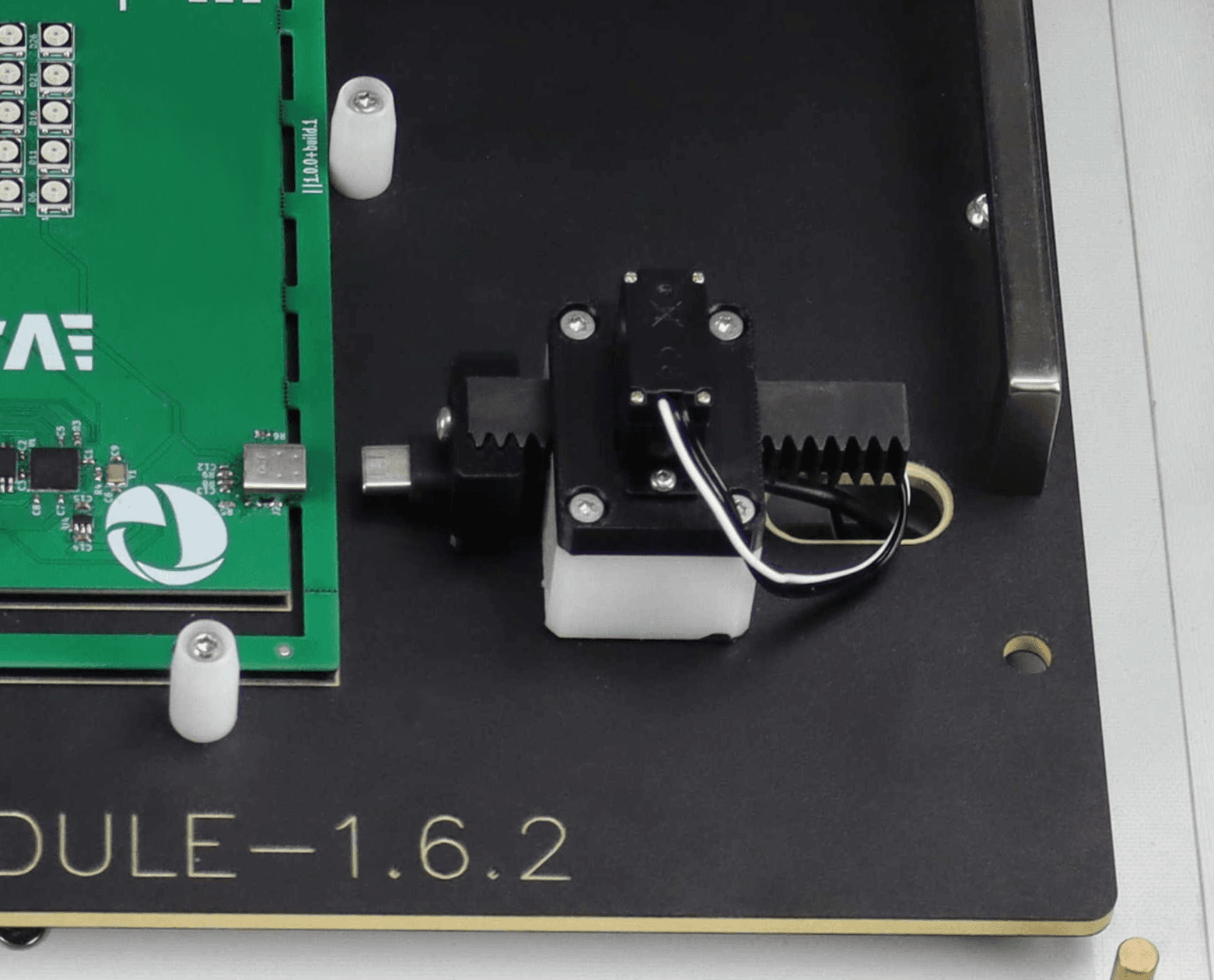

Modular test tool
Single tester multiple cassettes.
Save space by needing only cassettes in storage, not entire cabinets. Our test tool features quick swapping of test testups, this means you only need one EVAjig for testing multiple projects
Advanced provisioning and programming
Ready for the internet of things.
Advanced provisioning, programming and functional testing of devices, one tool to handle even the most difficult to provision IOT devices. If you need to provision certificates, custom keys, program your devices or electrically test your PCBA's EVAjig will make this easy and enjoyable

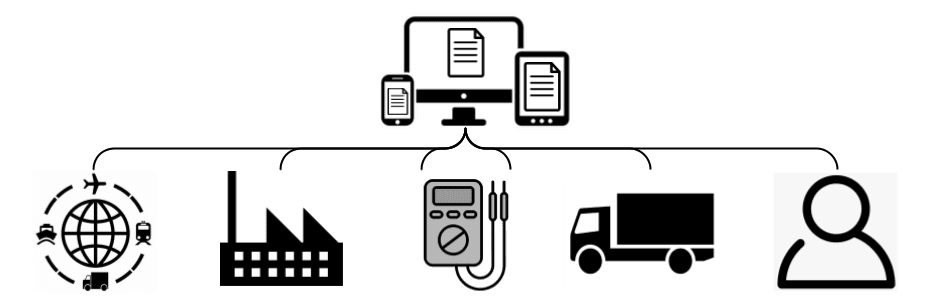

Administration
Identify devices with barcode scanners.
EVAjig tracks your devices by scanning barcodes on devices and allows integration with external API's to streamline production.
Single tester multiple cassettes.
Save space by needing only cassettes in storage, not entire cabinets. Our test tool features quick swapping of test testups, this means you only need one EVAjig for testing multiple projects
Ready for the internet of things.
Advanced provisioning, programming and functional testing of devices, one tool to handle even the most difficult to provision IOT devices. If you need to provision certificates, custom keys, program your devices or electrically test your PCBA's EVAjig will make this easy and enjoyable
Identify devices with barcode scanners.
EVAjig tracks your devices by scanning barcodes on devices and allows integration with external API's to streamline production.
Get started today
We currently offer a limited time lease of our EVAjigs. Contact us to see if you're eligable fo the offer.
Get started todayTechnical details
IO Module specifications
| Feature | Value | Comment |
|---|---|---|
| power | 4x (-24V to 24V) | 12 bit, current up to 4A |
| digital IO pins | 18x (1.8V to 5.0V) | IO Voltage controlled by reference pin |
| analog Out pins | 4x (-24V to 24V) | 12 bit, shared with Power pins |
| analog In pins | 8x (-24 to 24V) | 24 bit |
| protocols | SPI, U(S)ART, I2C, RS232, RS485, Ethernet |
See downloads section for more detailed information. Please contact EVAbits when a feature that you require is not listed.
Pricing
Every project is unique, but we can give you an indication.
Full EVAjig
Full EVAjig for testing 12 devices in parallel.
€ 34999
€ 29999
- includes 1 Basic Cassette
- includes 12 IO Modules
- includes 1 year portal access
- Test 12 devices in parallel
- Supports barcode/QR scanning
- Supports barcode/QR printing
Cassette only
If you own or rent an EVAjig you only need a cassette.
From € 2999
- Basic: up to 120 testpoints
- Standard: up to 600 testpoints
- Premium: custom functionality
- Optional module: barcode scanner
Additional IO module
You can always add IO modules as needed.
€ 499
- Test more devices in parallel
- 18x digital IO
- 4x analog Out or Power
- 8x analog In
- Supports I2C, SPI and U(S)ART
- Optional: Customized IO module
